Note: this Module requires a specific license in addition to the basic HScope license.

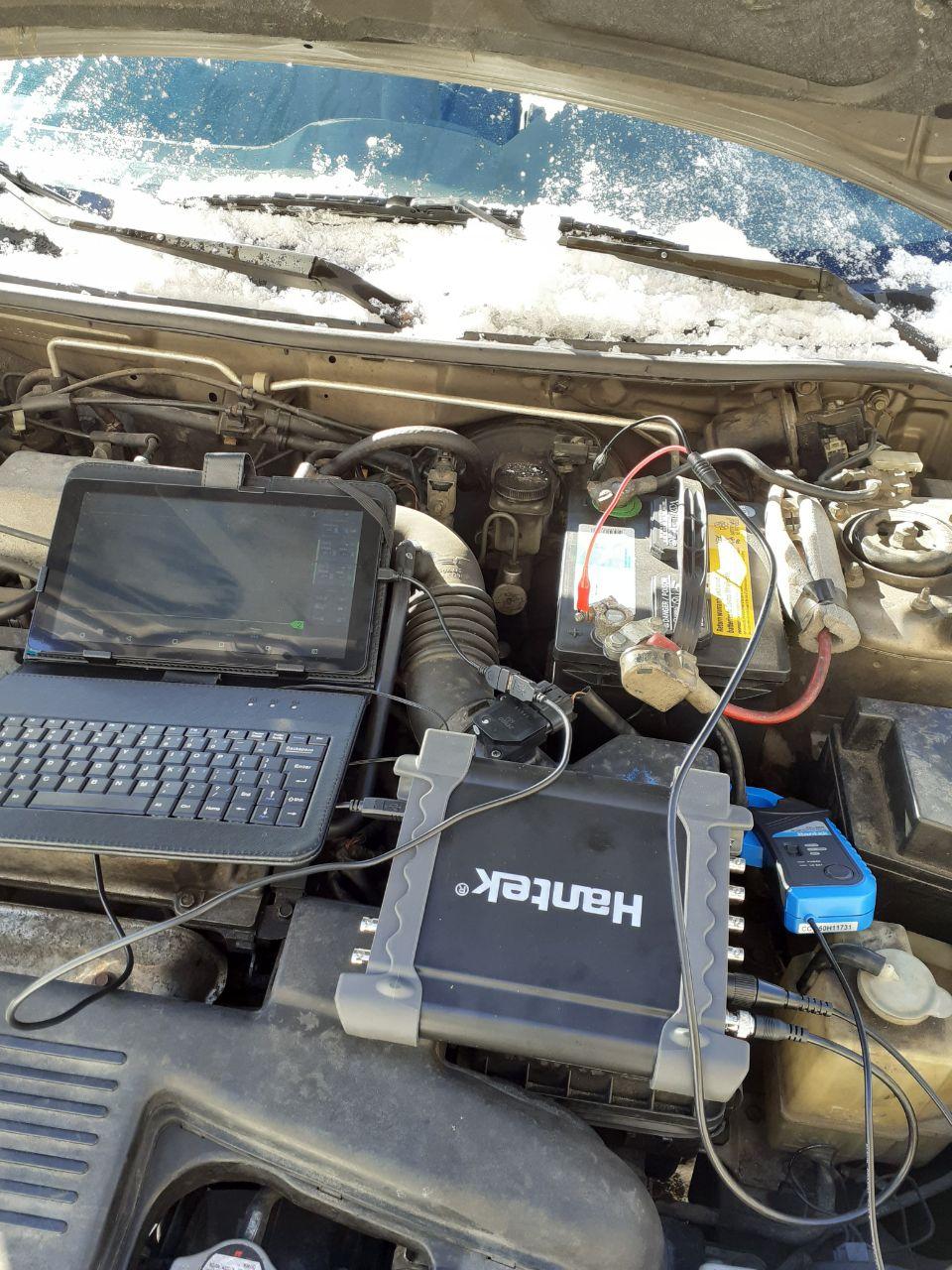

The Automotive Module provide a set of tools specifically made for Automotive diagnostic. It allow you to:
The Automotive Module allows lengthy and continuous real-time acquisition at lower sampling rates. Although this acquisition method is usually used for car diagnostics, it can be used in several other applications. Max sampling rate varies by oscilloscope.
This tool is useful to perform the relative compression test. You can set any number of cylinder and their firing order and compute power.
This tool allow to add the overlay of 720 degrees of crankshaft rotation in pressure waveforms. A middle cursor is moveable to allow relative measure of the angle. An option button allow to use different visualizations.
