Hantek 6022 / Voltcraft DSO2020

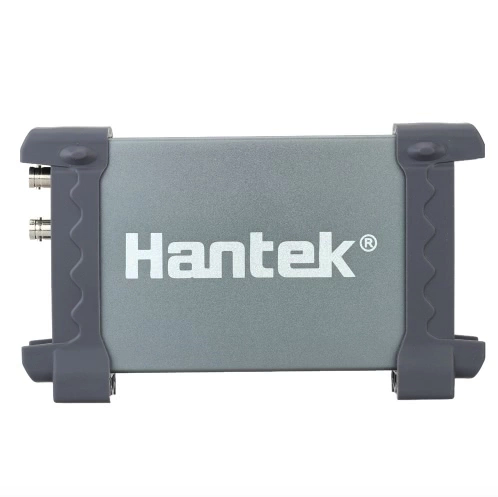

Hantek 6022BE

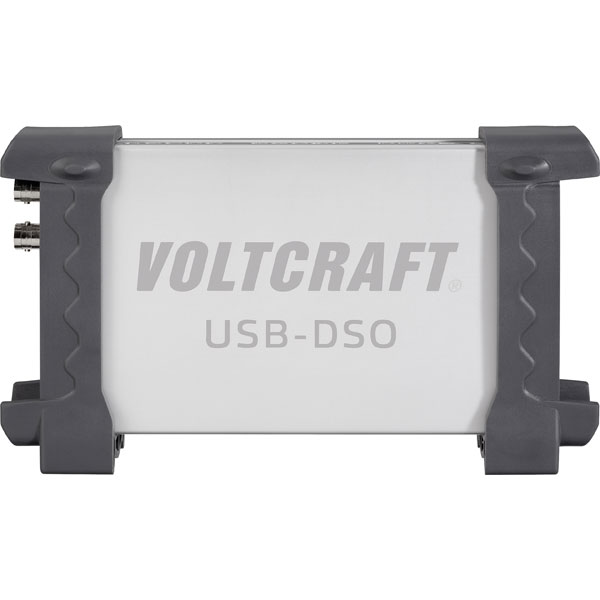

Voltcraft DSO2020

Since latest Android Releases (Android 10+) it seems this device is not recognized anymore as USB device in Android system. HScope is unable to work with it. It will continue to work with older phones/tablets.

HScope supports the following models:

  • Hantek 6022BE
  • Hantek 6022BL (only Analog mode)
  • Voltcraft DSO2020

Specifications *

  • Effective ADC bits (without error): 8 bits
  • Min sampling rate: 500 Sa/s
  • Max sampling rate (2 channels): 48 MSa/s
  • Input range: ±500mV to ±5V
  • Number of samples each scan: 1024 Sa
  • Waveform update rate (2 channels, rate >= 100KSa/s): 30 wfms/sec
  • Roll Mode: supported
  • AC/DC: software (not present in the hardware)

*Provided by HScope

Modules Support

  • Automotive Module: supported up to 125KSa/s real-time
  • Audio Module: supported
  • PWM Generator: supported up to 10KHz, duty cycle 5-95%

Rate vs Memory Buffer

Standard Rates

  • 250,500 Sa/s (8 kSa)
  • 1,2,8,16,25,50,100 kSa/s (8 kSa)
  • 200,500 kSa/s (1 kSa)
  • 1,2,4,8,16,24,48 MSa/s (1 kSa)

High Resolution Experimental Mode

  • 500 Sa/s (8 kSa)
  • 1,2,5,10,25,50,125 kSa/s (8 kSa)
  • 250 kSa/s (4 kSa)
  • 500 kSa/s (8 kSa)
  • 1 MSa/s (8 kSa)
  • 2,4,8,16,24,48 MSa/s (1 kSa)

6022BL Configuration

The 6022BL works just in oscilloscope mode (not as logic analyser). To let it work correctly in HScope you need to push the button on the oscilloscope in position H (pushed in).

Licensing

Voltcraft DSO2020 works with the license for Hantek 6022BE.
Hantek 6022BL has a separate license.

Hardware Modifications

You can modify this device by adding isolated AC input capability to the front-end of each channel. This mod has been originally made to be used with the openhantek6022 software to switch the AC circuitry in or out of the front-end of the scope’s inputs.

Link to the mod documentation here.

This option is available since V.277. The first time, after you connected the oscilloscope, go in HScope Settings → Oscilloscope and enable the option under Hardware Configurations to use it.
