Loto OSC482 / SainSmart DS482

Loto OSC482 / SainSmart DS482

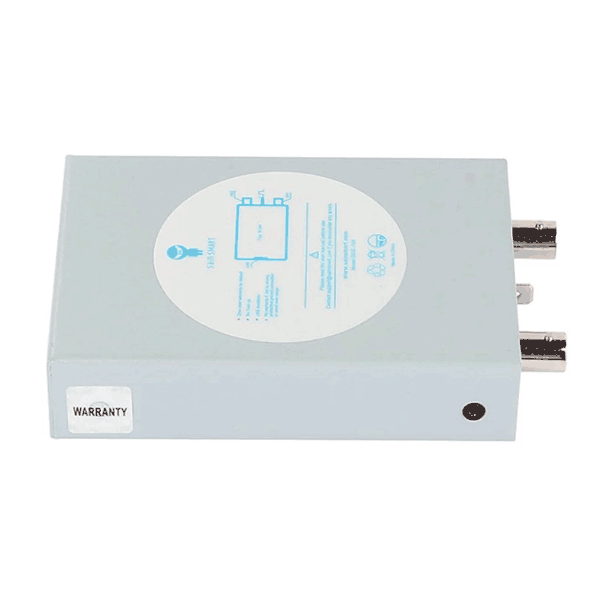

Sainsmart DDS120

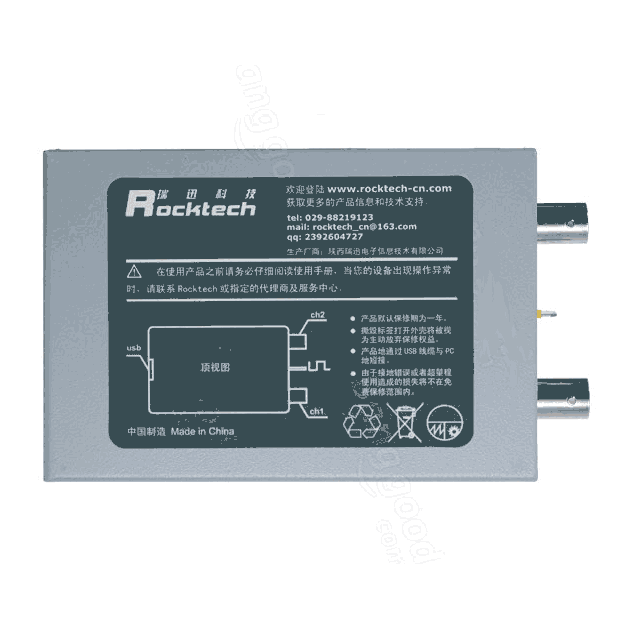

Rocktech BM102

Models Supported

For Loto OSC482, all the submodels are supported, including the M one which is provided with its own Android app:

OSC482, OSC482D, OSC482F, OSC482H, OSC482L, OSC482M, OSC482S, OSC482X

Submodels are just supported in the main Oscilloscope features and not in the specific additional feature (for example signal generator).

Specifications *

  • Effective ADC bits for OSC482/DS482 (without error): 8 bits
  • Effective ADC bits for DDS120/BM102 (without error): 7 bits
  • Min sampling rate: 500 Sa/s
  • Max sampling rate (2 channels): 48 MSa/s
  • Input range (OSC482/DS482): ±100mV to ±5V
  • Input range (DDS120/BM102): ±250mV to ±6.5V
  • Number of samples each scan: 1024 Sa
  • Waveform update rate (2 channels, rate >= 100KSa/s): 30 wfms/sec
  • Roll Mode: supported
  • AC/DC: hardware

Modules Support

  • Automotive Module: supported up to 125KSa/s real-time
  • Audio Module: supported
  • PWM Generator: supported up to 10KHz, duty cycle 5-95%

Advantages

  • Hardware AC/DC coupling
  • Fast real time acquisition with Cypress FX2 chipset (reach top rate in Automotive Module)
  • High ADC resolution at lower rates (experimental)
  • (OSC482/DS482) HScope read device calibration data (not need to be calibrated)

Disadvantages

  • ±Input voltage up to 5V

Rate vs Memory Buffer

Standard Rates

  • 250,500 Sa/s (8 kSa)
  • 1,2,8,16,25,50,100 kSa/s (8 kSa)
  • 200,500 kSa/s (1 kSa)
  • 1,2,4,8,16,24,48 MSa/s (1 kSa)

High Resolution Experimental Mode

  • 500 Sa/s (8 kSa)
  • 1,2,5,10,25,50,125 kSa/s (8 kSa)
  • 250 kSa/s (4 kSa)
  • 500 kSa/s (8 kSa)
  • 1 MSa/s (8 kSa)
  • 2,4,8,16,24,48 MSa/s (1 kSa)

First Time Configuration

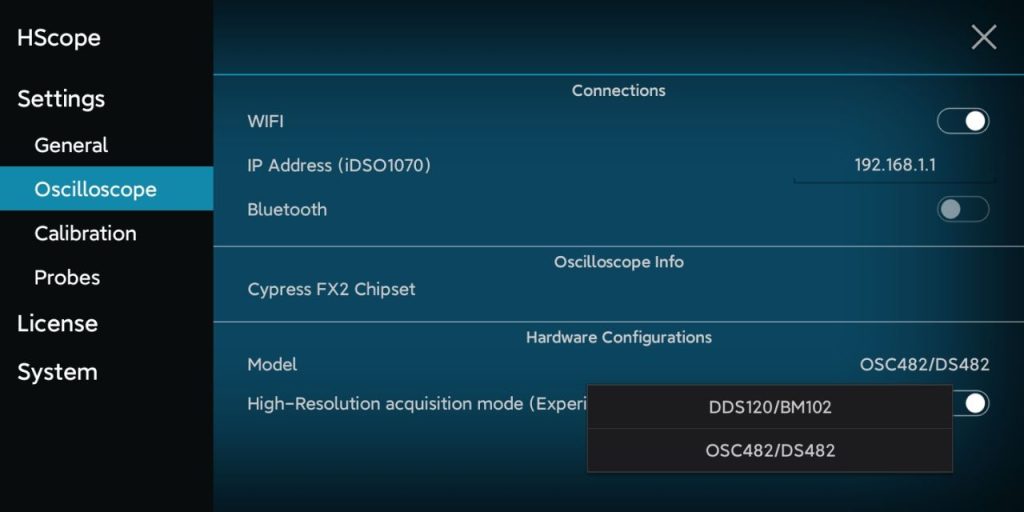

Also the old SainSmart DDS120 and Rocktech BM102 at the first connection are recognized as LOTO OSC482 (new model). When they are connected to the phone then it need to be configured in the app Settings->Oscilloscope->Hardware (Model) as DDS120. Disconnect and reconnect the oscilloscope.

License

HScope supports the following models which are recognized at the first connection as LOTO OSC482:

  • Loto OSC482/SainSmart DS482 (it uses license Loto OSC482)
  • SainSmart DDS120 (it uses license SainSmart DDS120)
  • Rocktech BM102 (it uses license SainSmart DDS120)

Other

SainSmart DDS120 / Rocktech BM102 devices are also supported by Sigrok.
