Description
A laboratory equipment to test and calibrate Current Clamps for oscilloscopes.
Main Features
- Fast high current square pulse generator (up to 6A)
- Allow test and calibration of common oscilloscope current clamps with ranges from 10A to 80A
- Suitable for current clamps up to 1MHz bandwidth
- Input Voltage: 9-12V
- Includes oscilloscope and power supply cable (power supply not provided)
Applications
- Calibration of current clamps
- Test current clamp response to square wave (shape);
- Test current clamp response time.
Package content

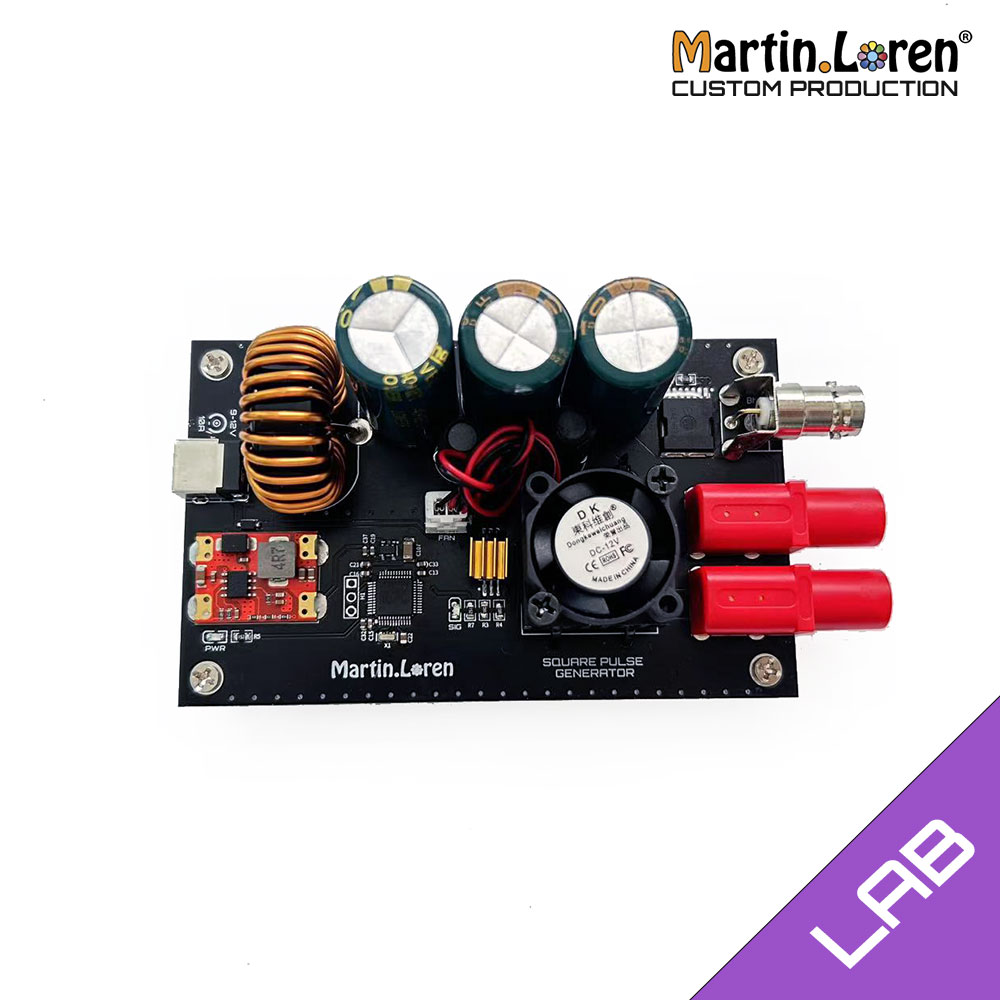

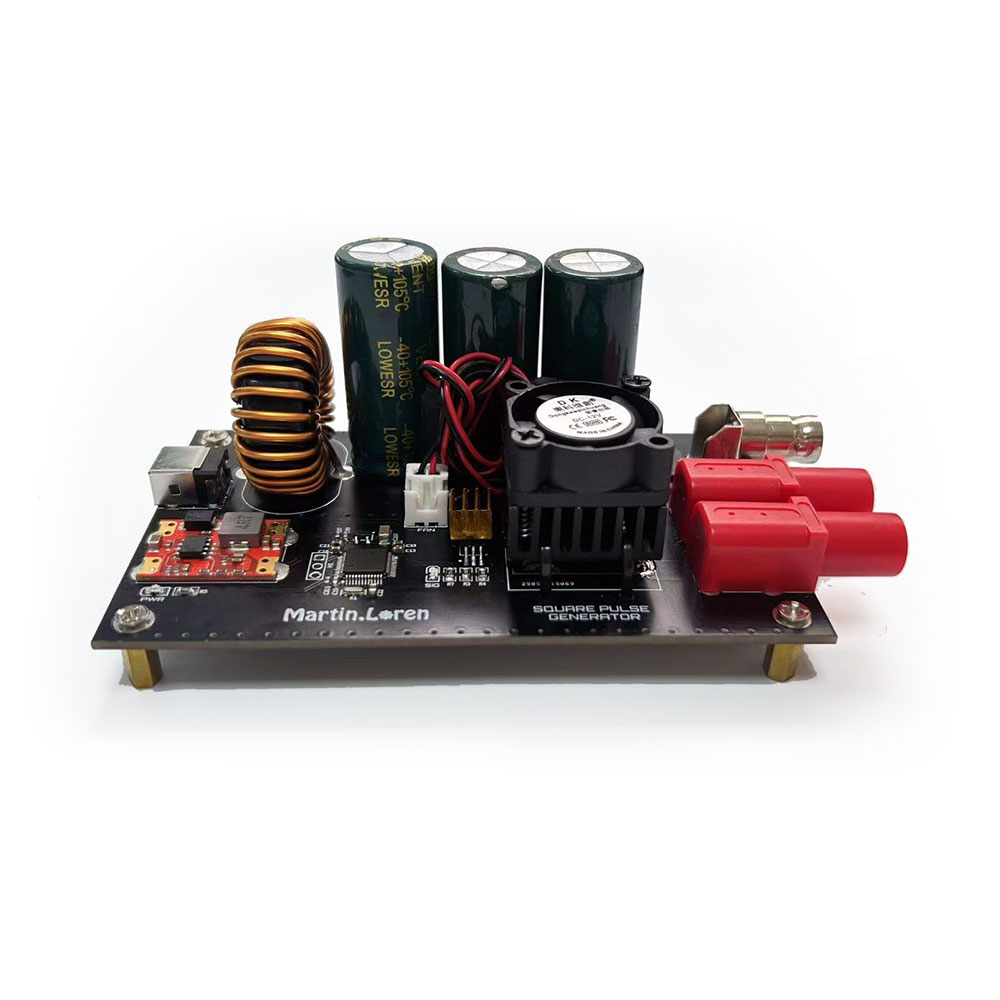

- x1 Pulse Generator main PCB board

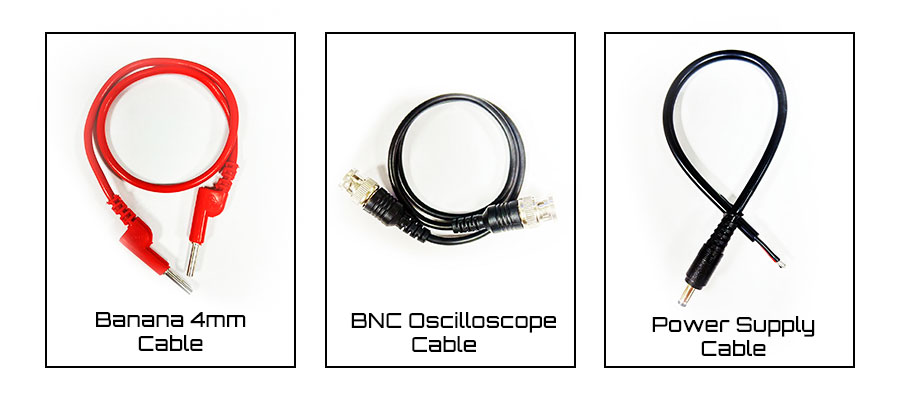

- x1 Power supply cable (30cm)
- x1 Short 4mm banana cable, high current
- x1 BNC to BNC cable (30cm)
Specifications
| Input Voltage | 9-12V |
| Output Current | 4.5 – 6A |
| Max Power Consumption | 75W @ 12V |
| Pulse Width | 100 µS |
| Rise time 0-6A | ≤ 500 nS |
| Indicators | Red power LED + Blue PWM signal LED |
| Standard requirements for power supply | 12V DC, 10A, 120W |
| Weight | 180g |
| Dimensions | 125mm(L) x 68mm(W) x 55mm(H) |
User Manual
(available for purchased orders)
Note
This product is available in back-order only. After placing the order the product will be produced within 1 week and then delivered.
