Automotive Waveforms

February 13, 2000September 1, 2020

Here some sample of automotive waveform captured by users.

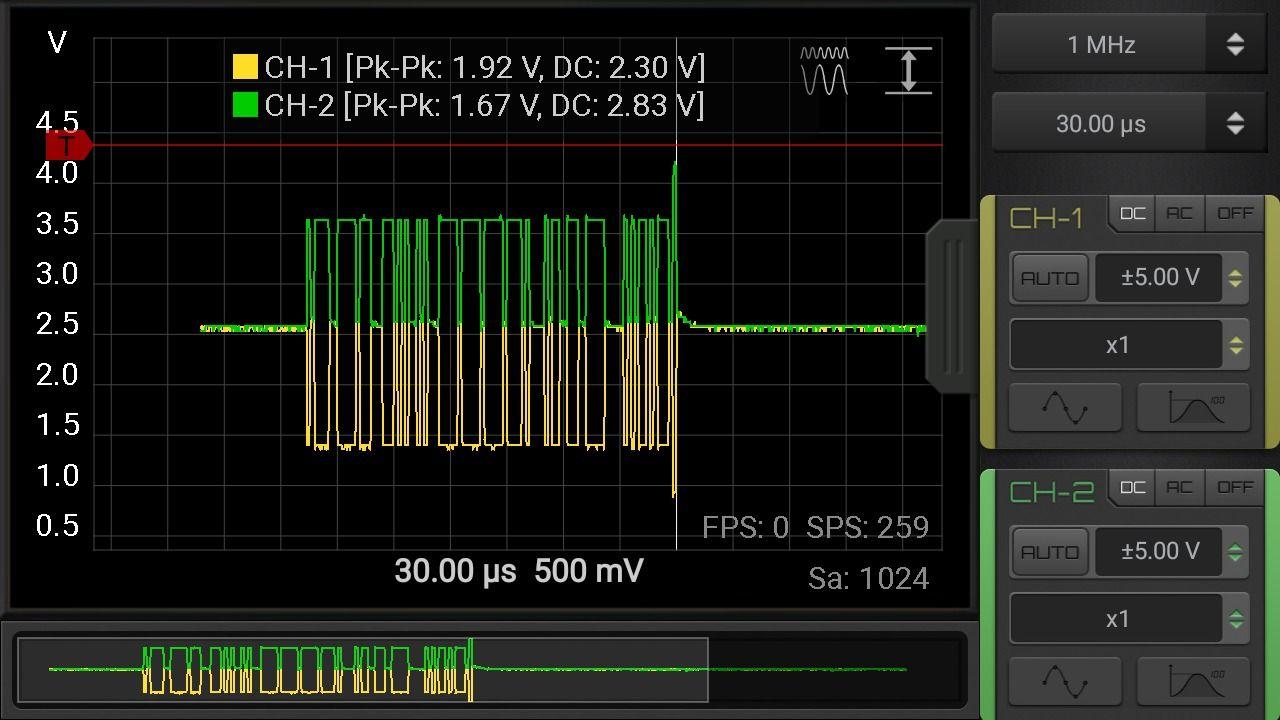

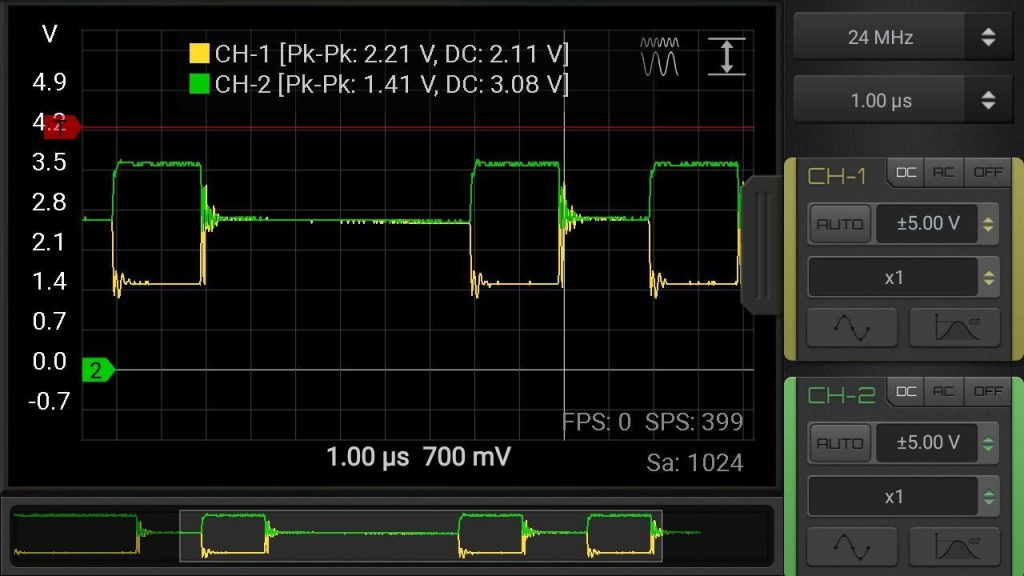

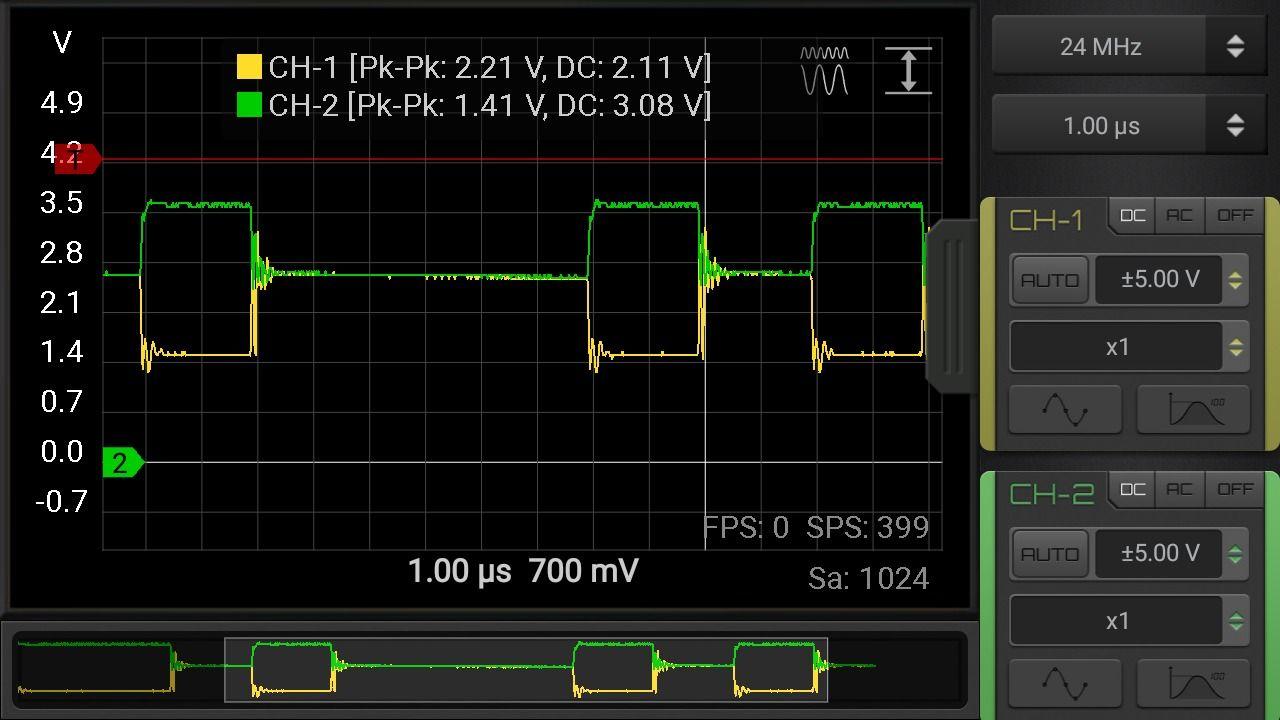

CAN Bus

CAN Bus

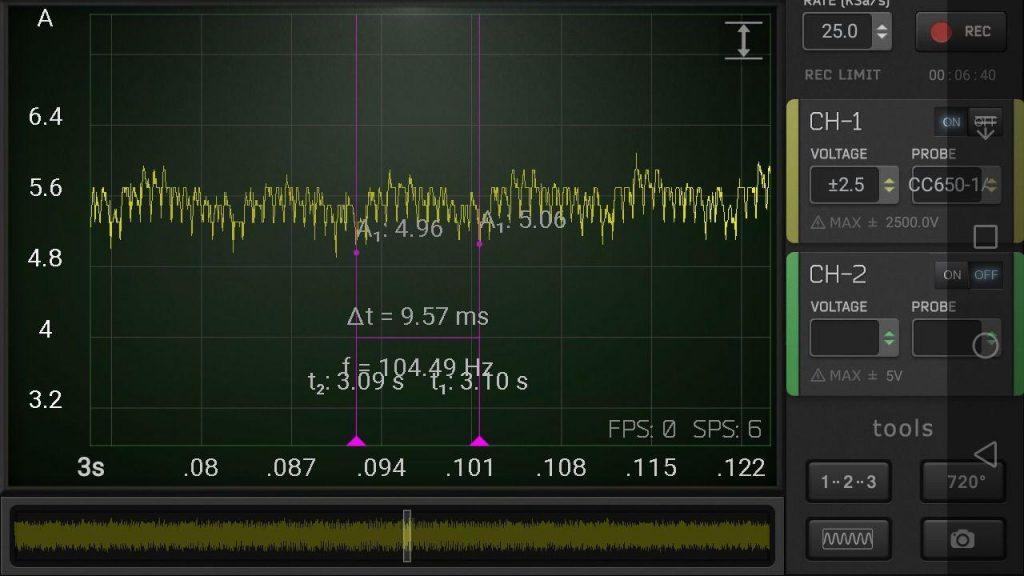

Pump 60000/9.57 6270 RPM

Pump 60000/9.57 6270 RPM

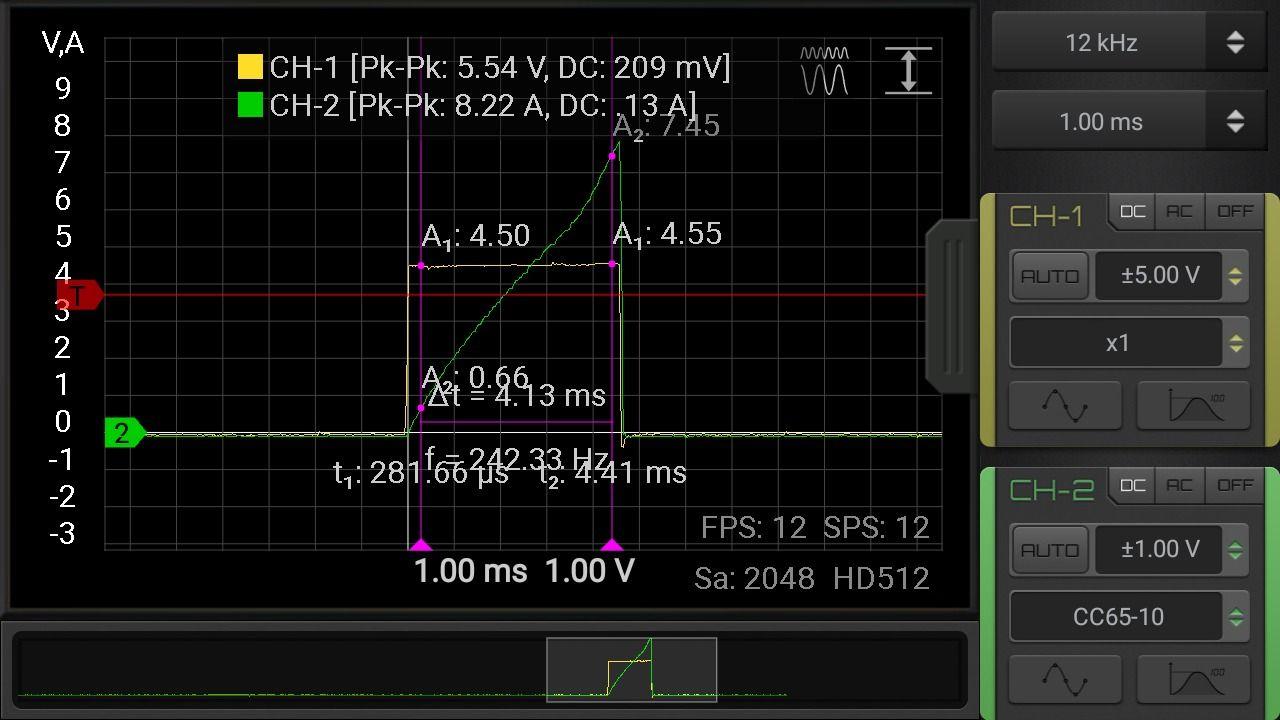

Activation signal and current ramp

Activation signal and current ramp

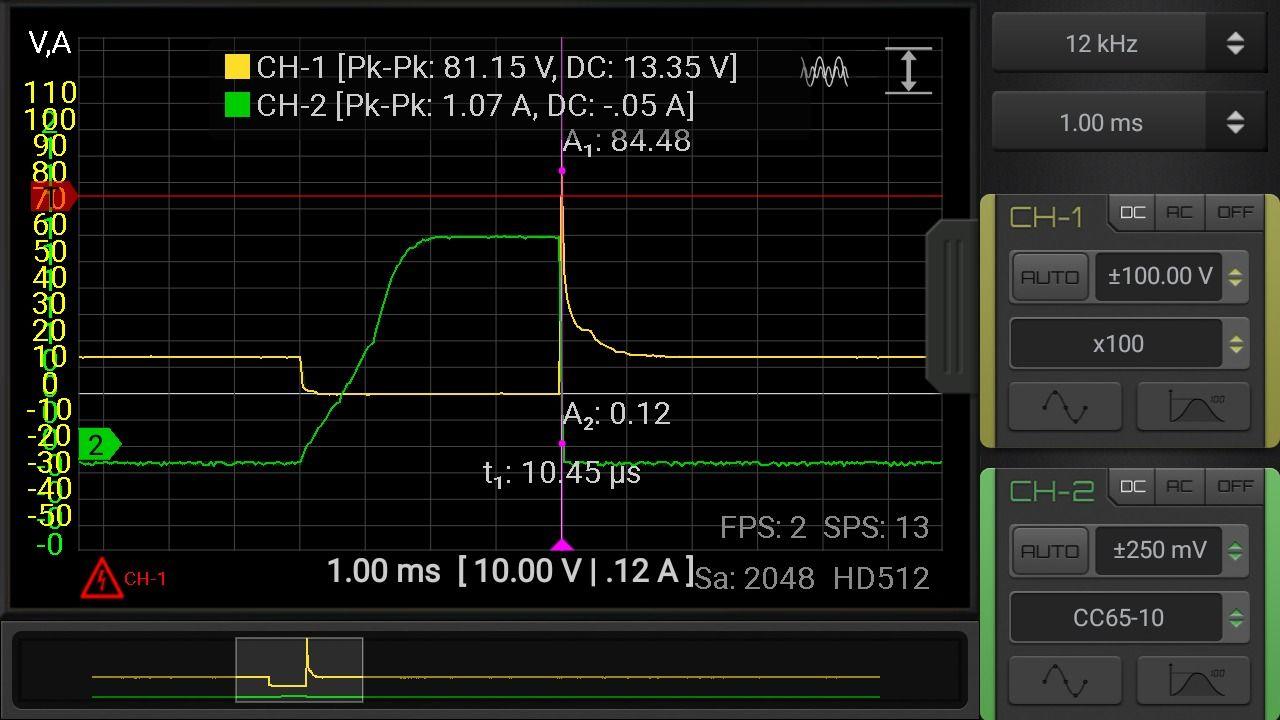

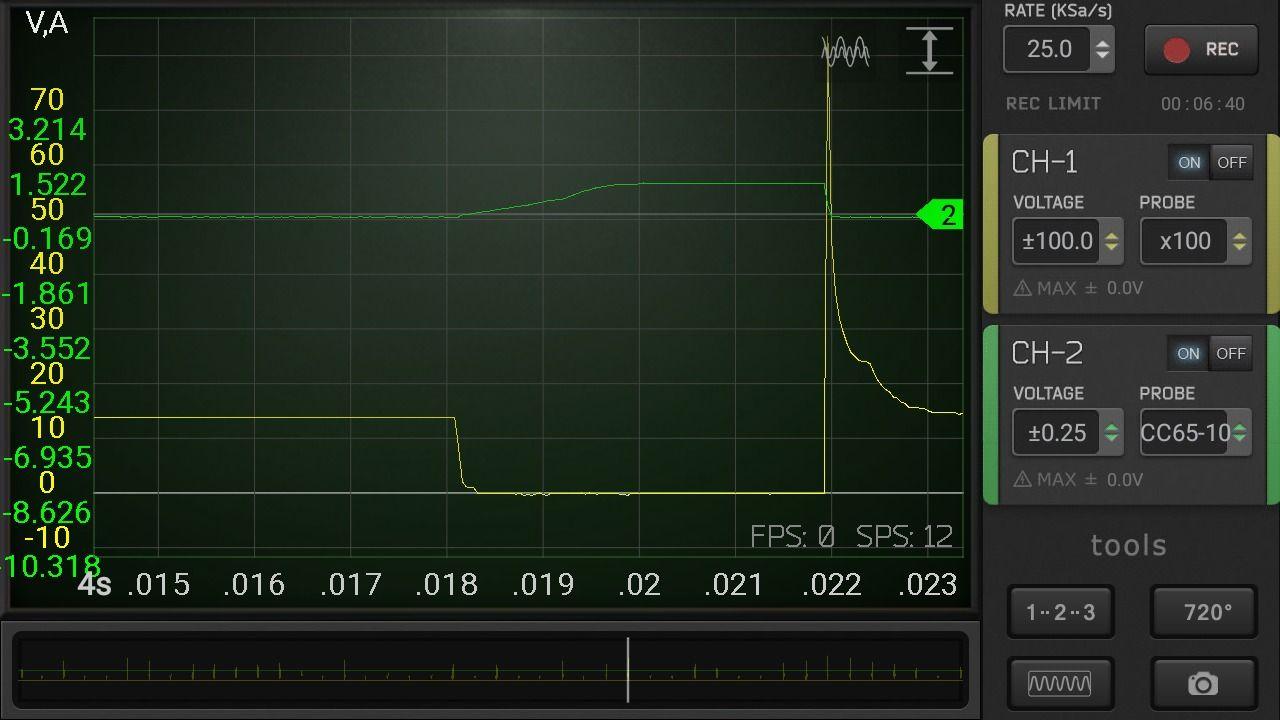

Voltage and current ramp injector

Voltage and current ramp injector

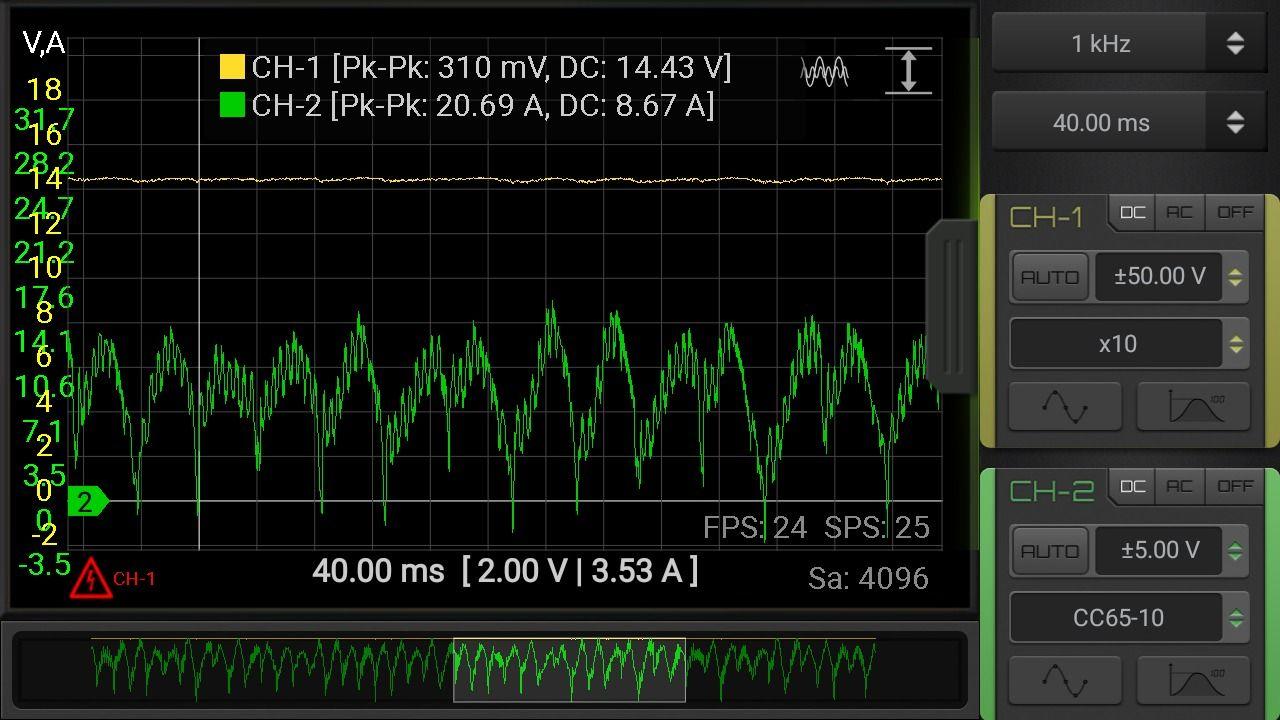

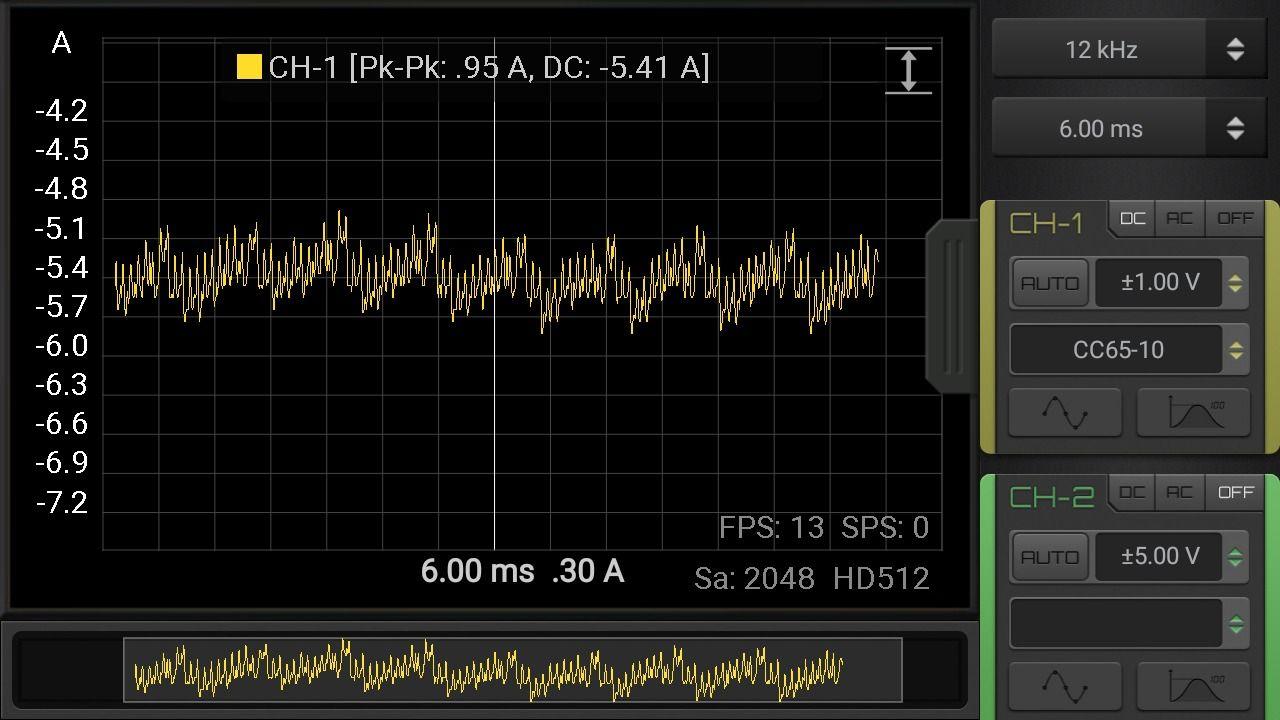

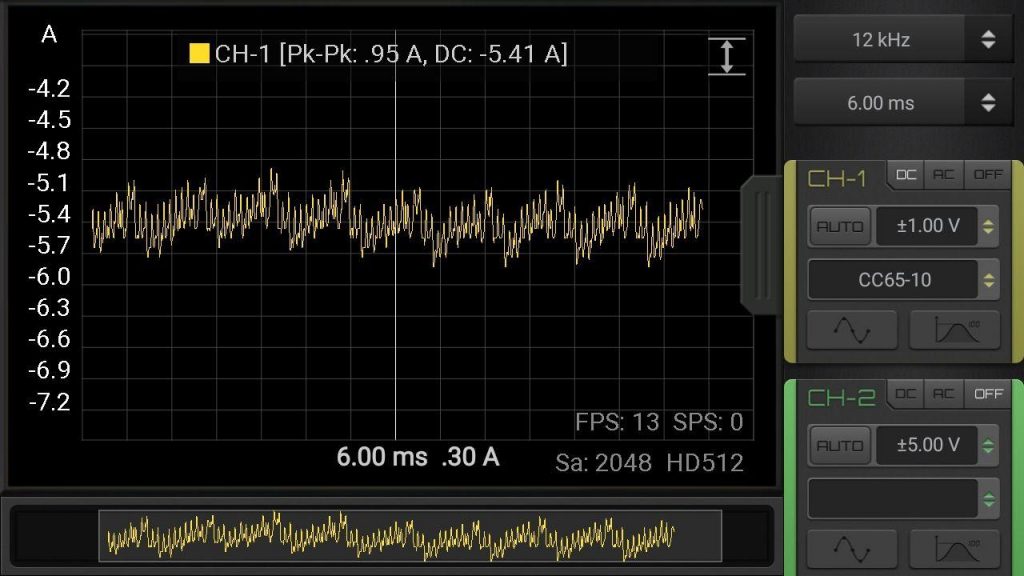

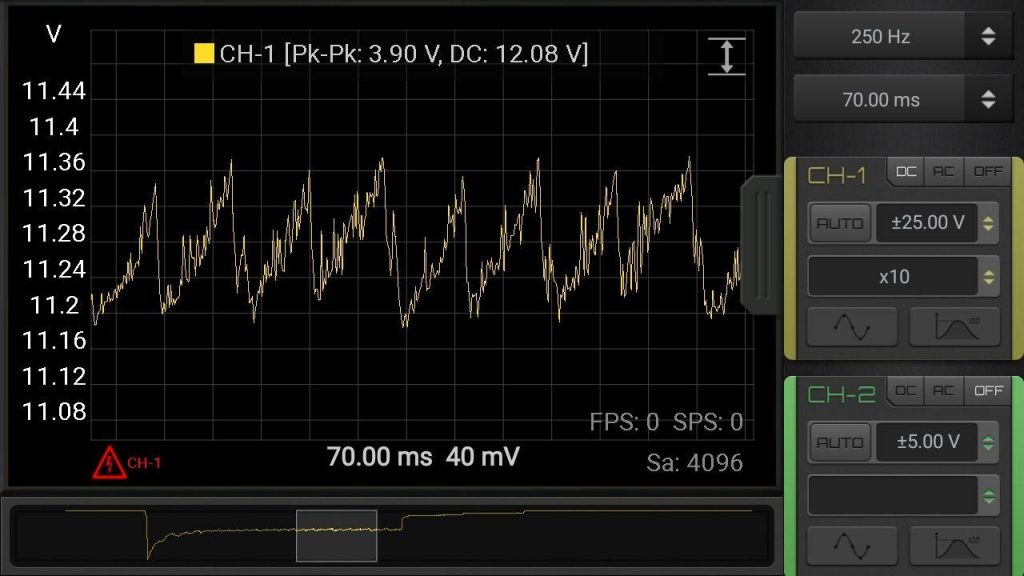

AC ripple and current from battery

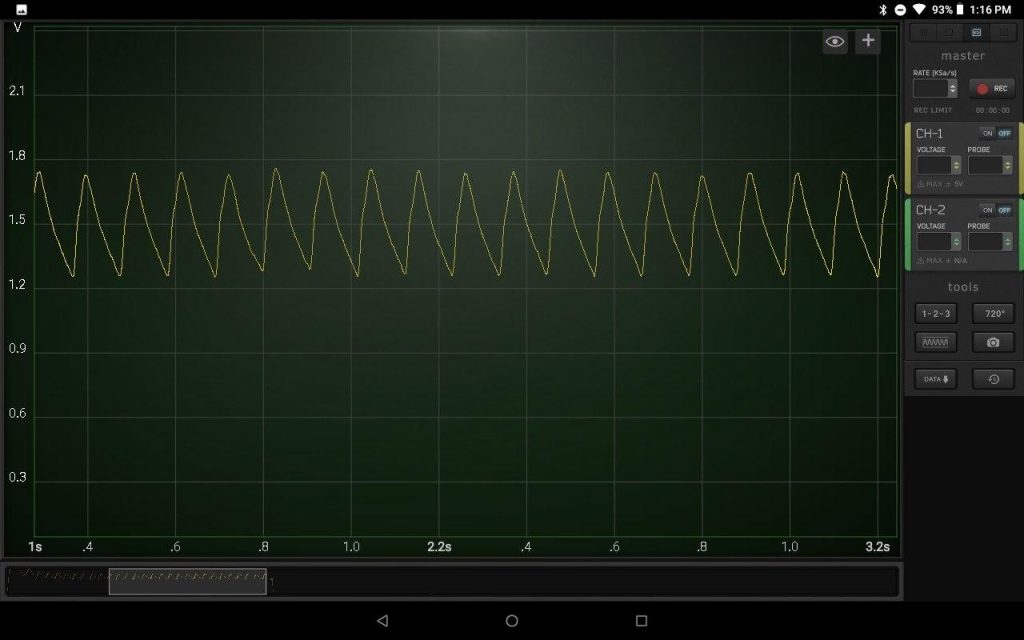

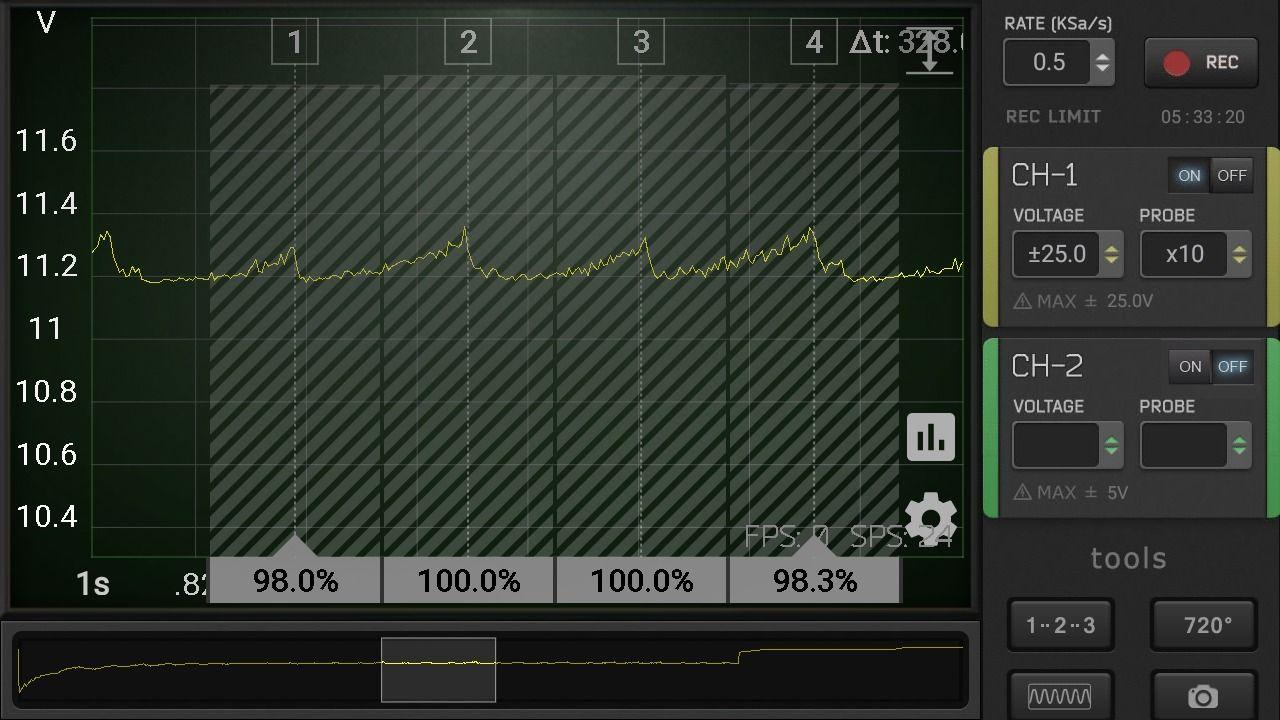

Relative compression using AC ripples on battery voltage

Relative compression using AC ripples on battery voltage

Vacuum using the first look in the manifold (the yellow is cylinder 1 for syncro)

Vacuum using the first look in the manifold (the yellow is cylinder 1 for syncro)

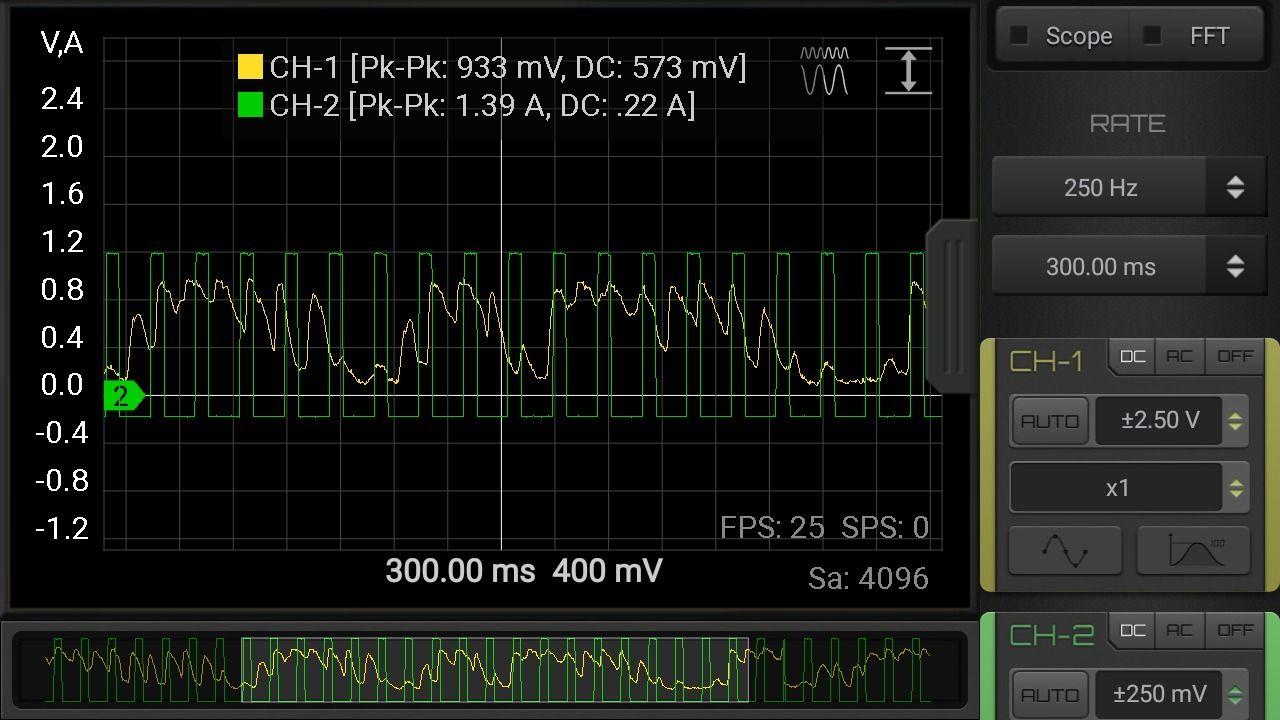

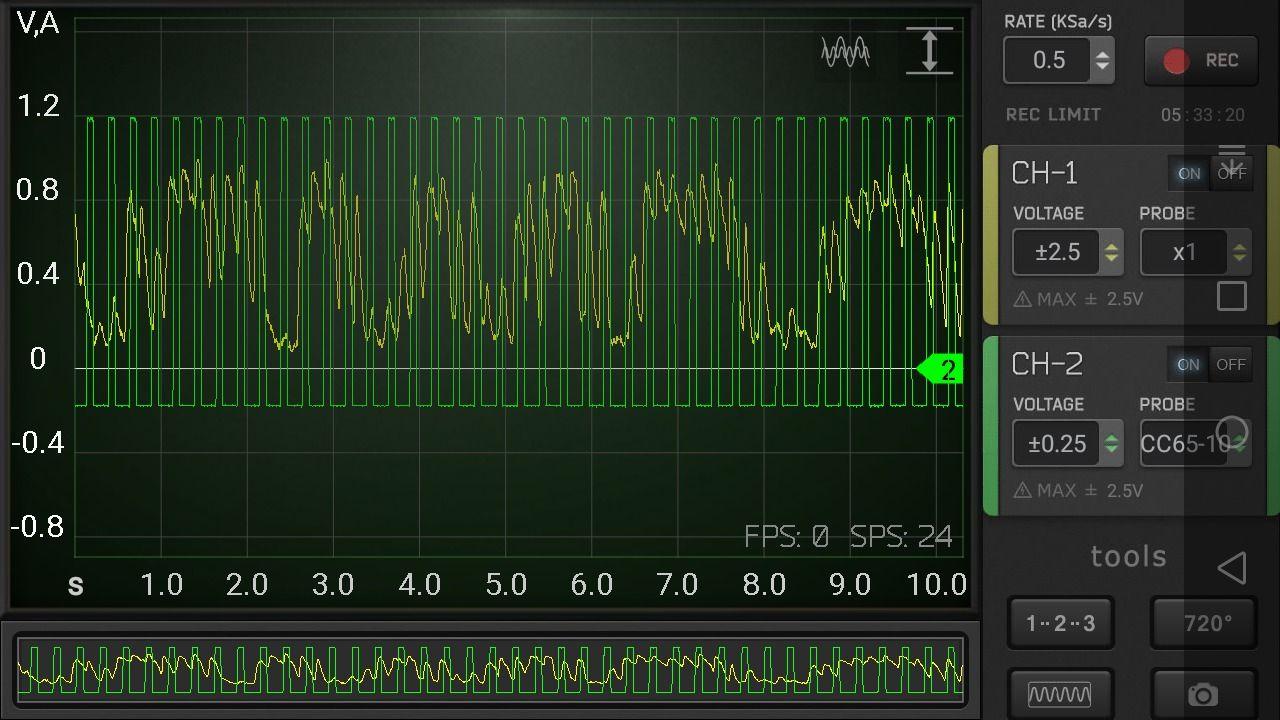

Oxygen sensor and heater current

Oxygen sensor and heater current

Relative compression with amp clamp

Relative compression with amp clamp

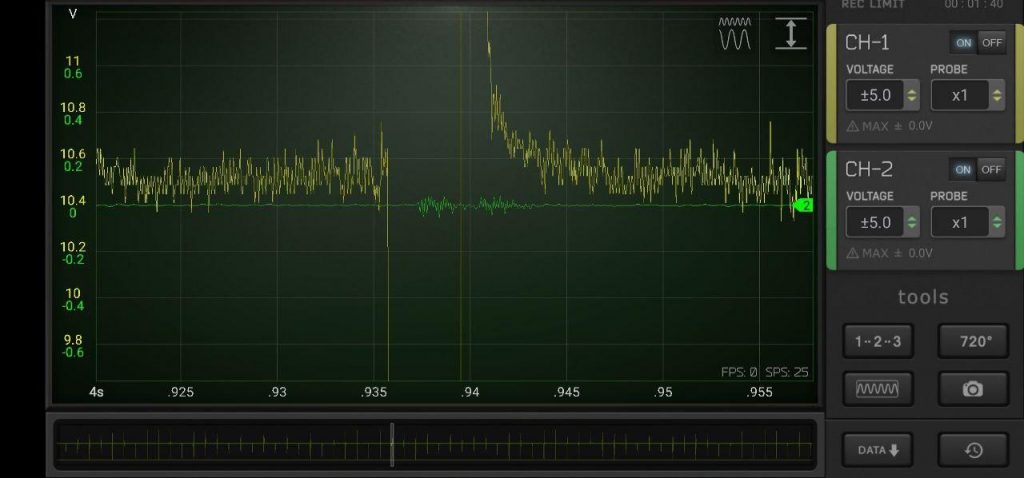

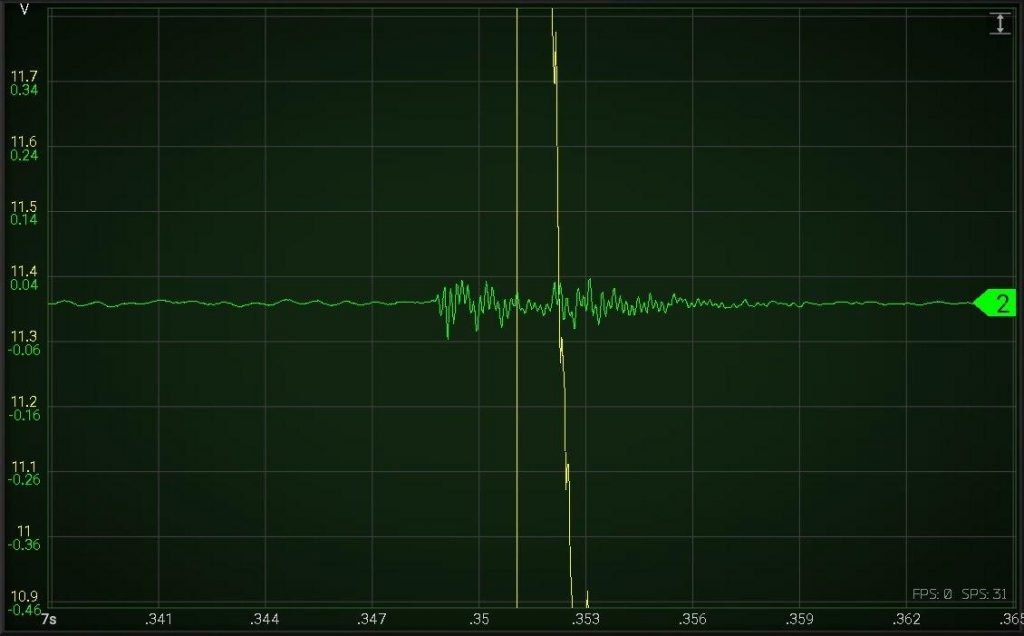

Opening and closing of pintle (in green, detected with stethoscope)

Opening and closing of pintle (in green, detected with stethoscope)

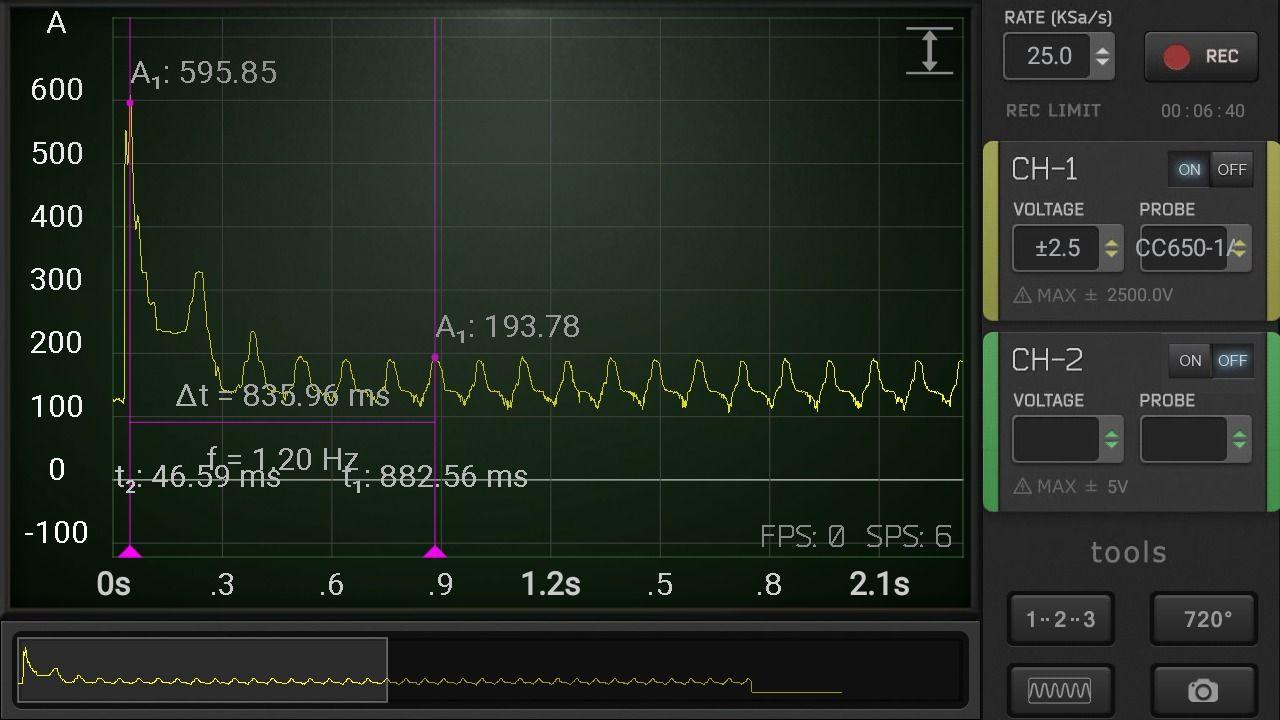

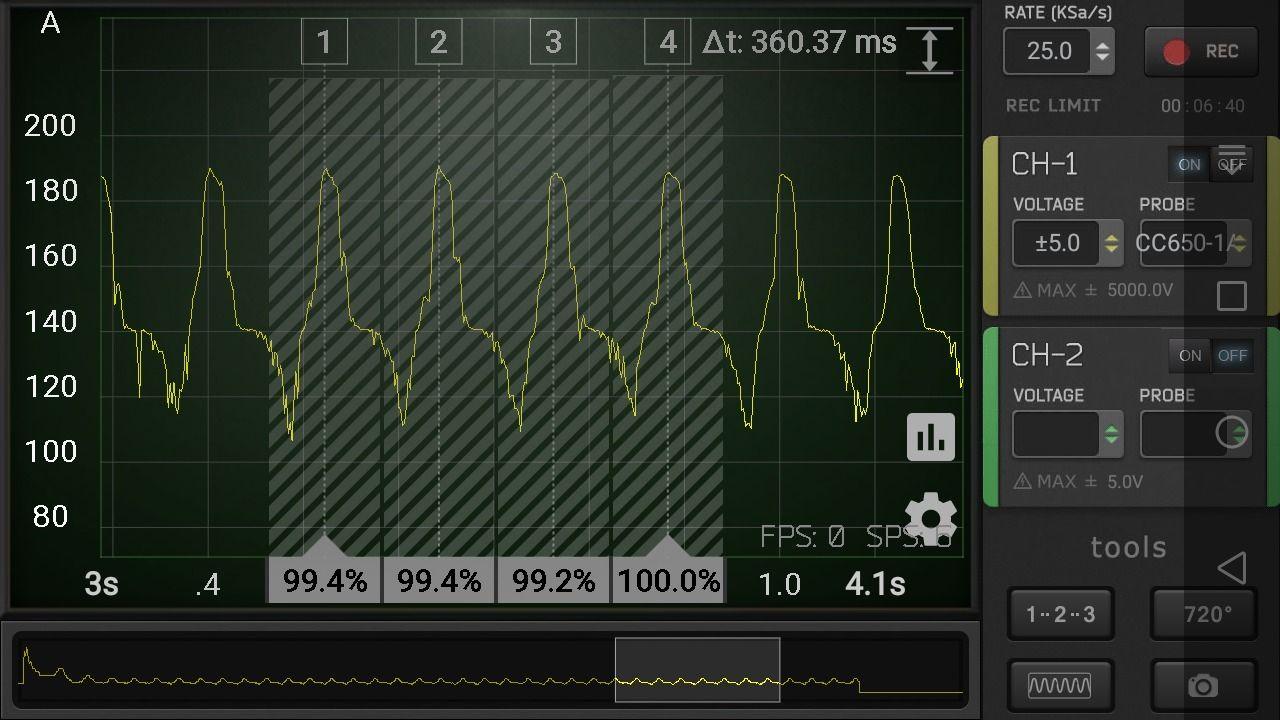

Relative Compression test with Hantek CC-650 @ 25Ksa/s (on the right with 33Hz DSP Low Pass Filter)

Relative Compression test with Hantek CC-650 @ 25Ksa/s (on the right with 33Hz DSP Low Pass Filter)

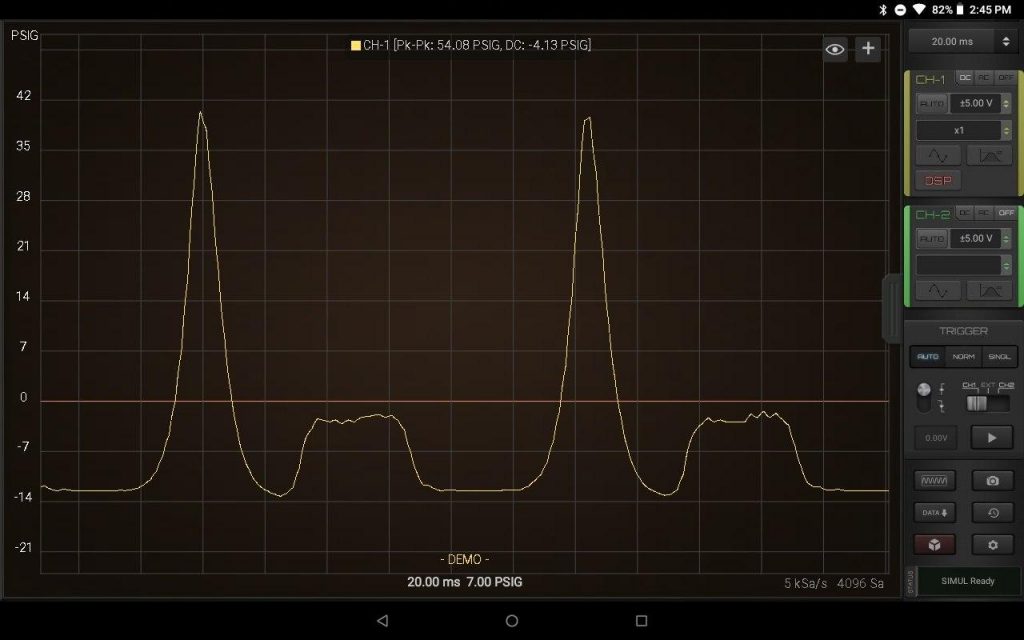

Budget PSI sensor in-cylinder test. 5Ksa/s without and with 80Hz DSP low pass filter.

Budget PSI sensor in-cylinder test. 5Ksa/s without and with 80Hz DSP low pass filter.

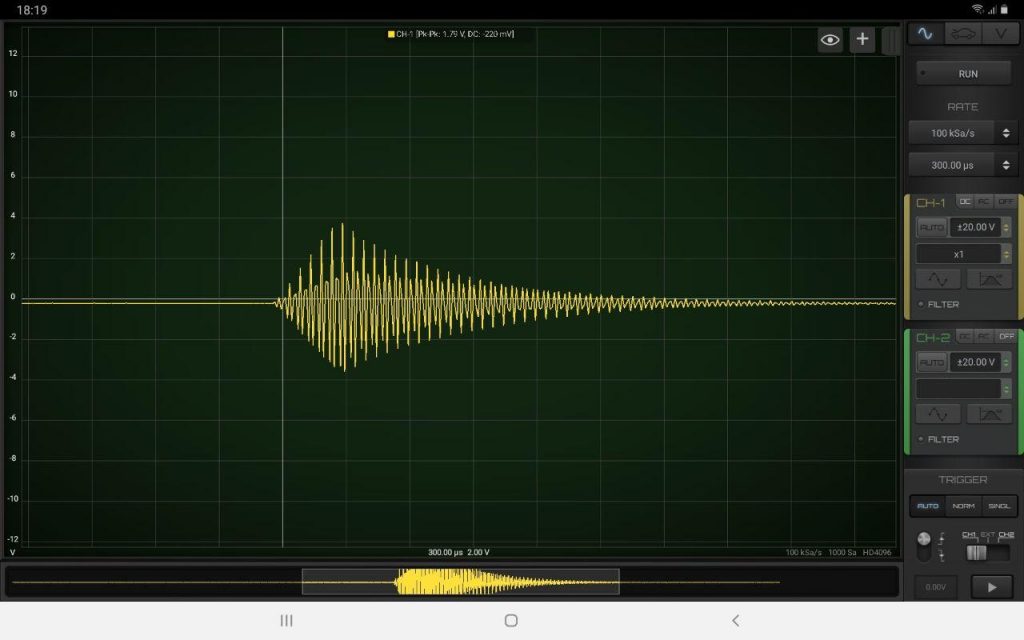

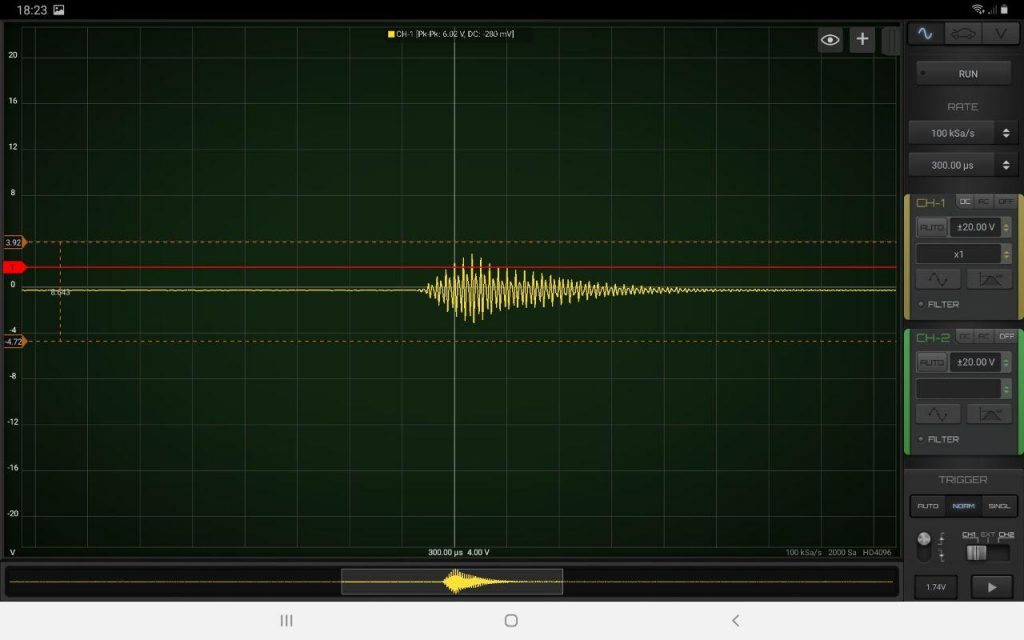

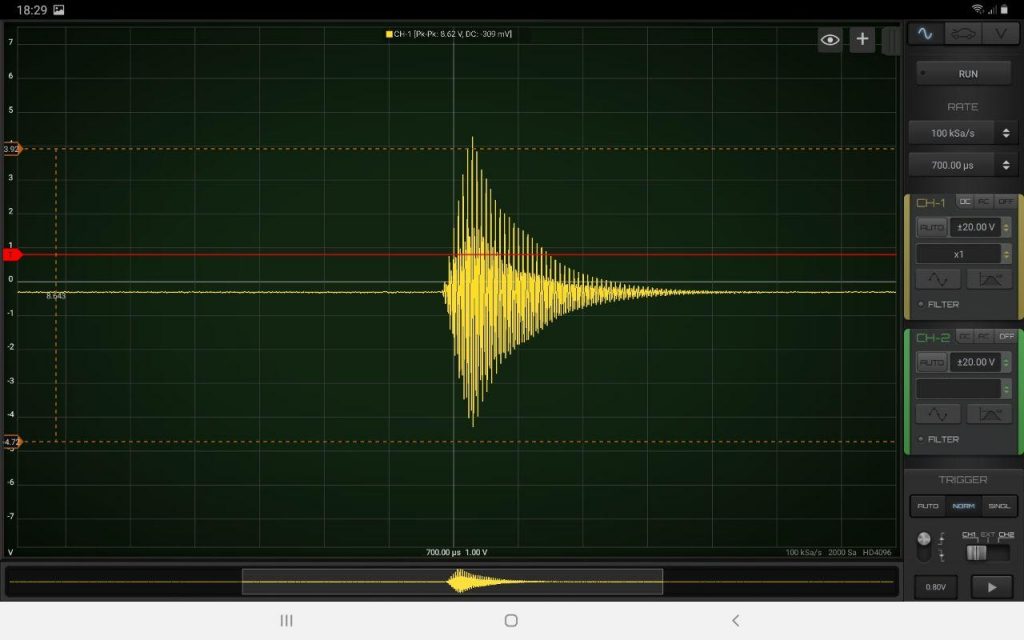

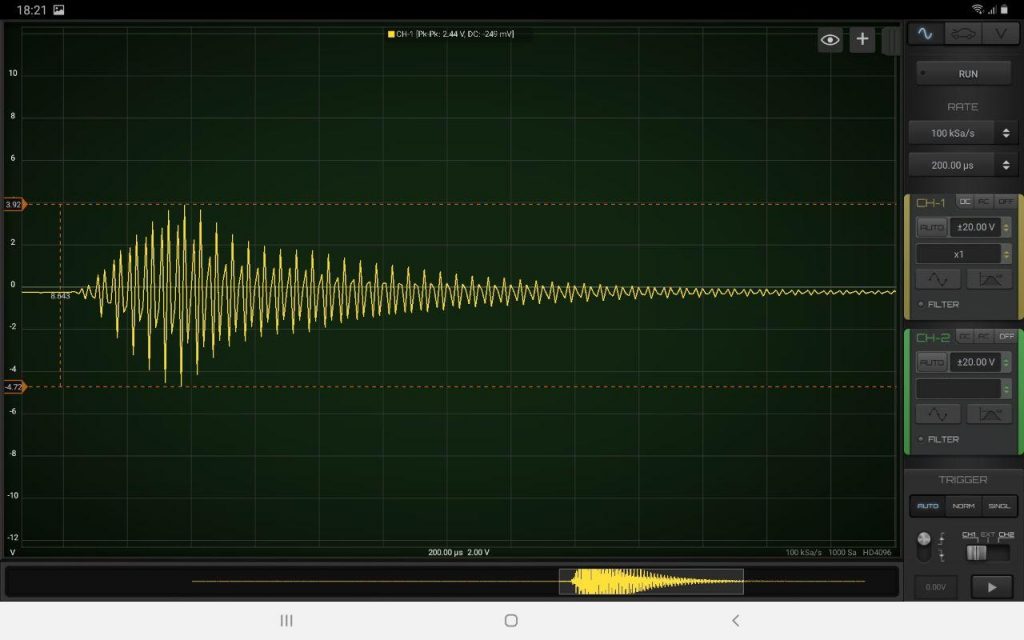

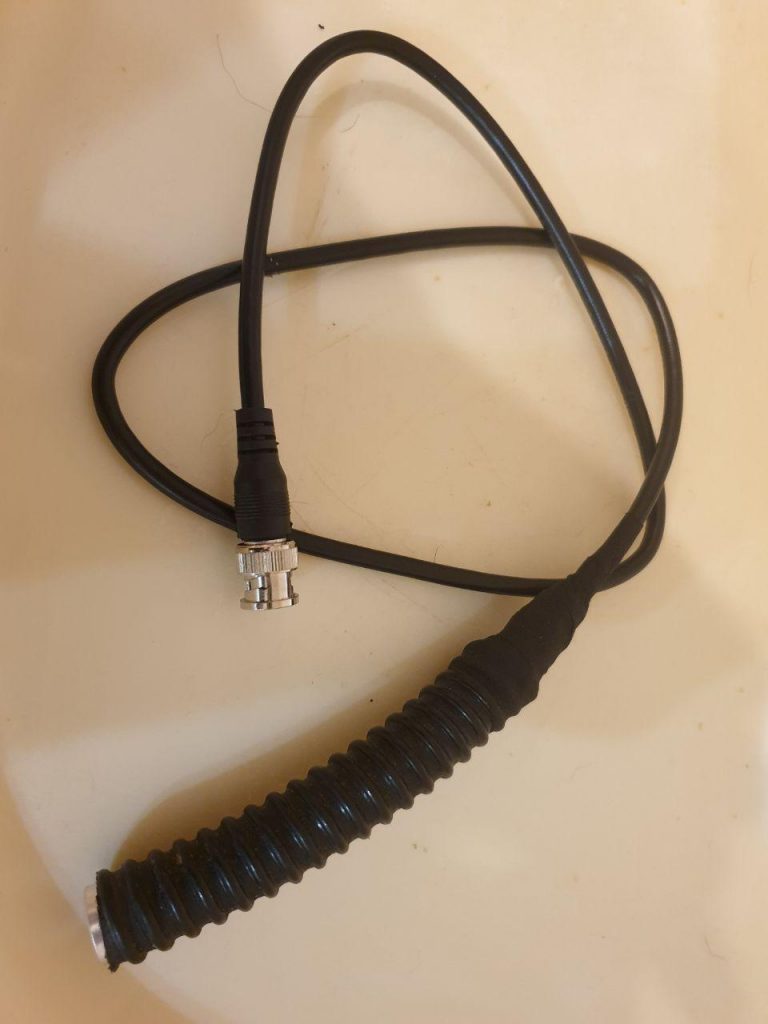

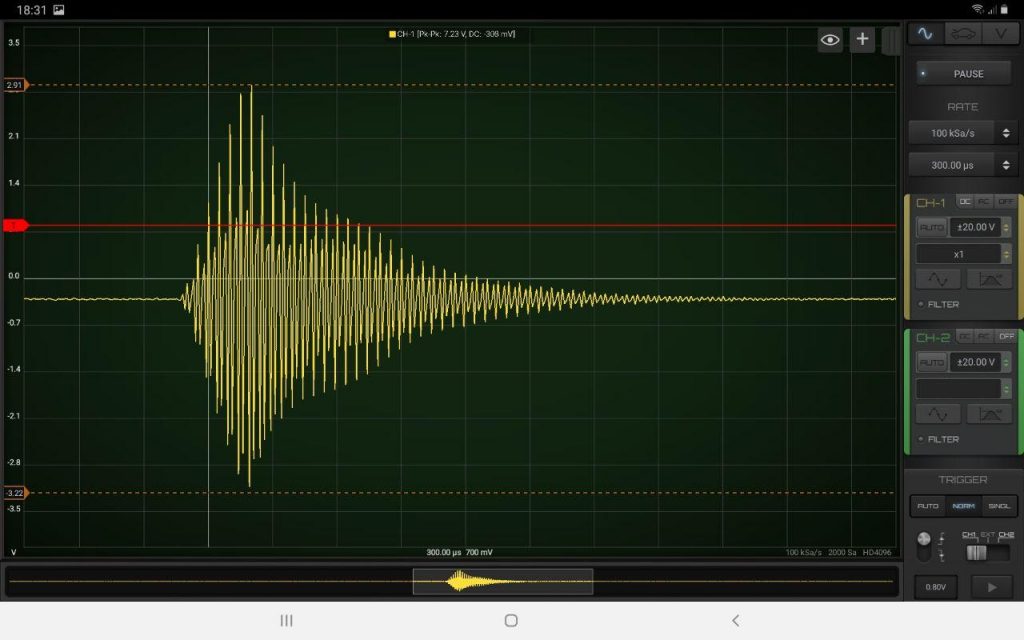

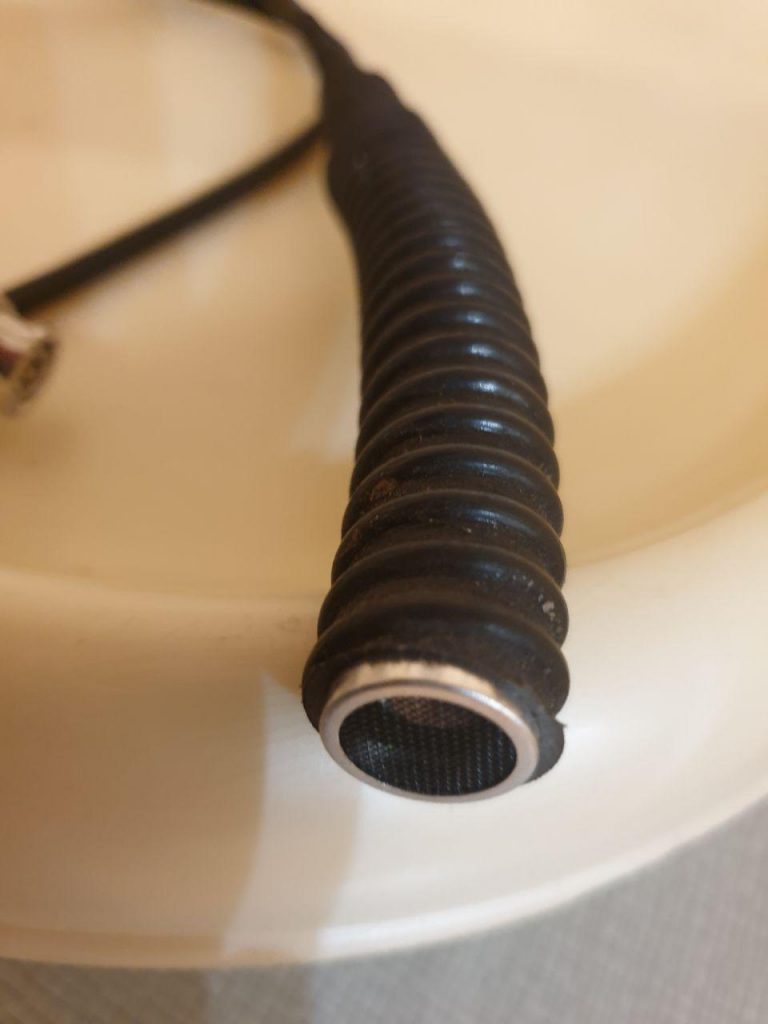

Testing on reversing/parking sensors by using an Ultrasonic Wave Sensors (DIY Built by Bernard, 2020).

Testing on reversing/parking sensors by using an Ultrasonic Wave Sensors (DIY Built by Bernard, 2020).
