Description
Item specifications
- Brand Name: HoldPeak
- Model: HP-605C
- Measuring Range: AC/DC 6A/40A Current
- Signal output: 10mV/1A
- Accuracy: ±(2.5%rdg+5dgt)
- Jaw Size: 21 mm

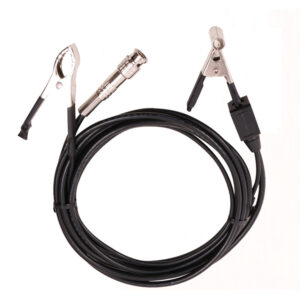

- Silicon BNC cable, high temperature, 1.5m
- Battery Type (not included): 9 V * 1
- Dimensions: 175*80*35.5mm
- Weight: 216g
Package Contents
- 1 x Current Clamp (battery not included)
First Installation
- Remove the 3 screws in the back of the device
- Connect a new 9V battery and place in its compartment
- Close the device back cover
